Product Details

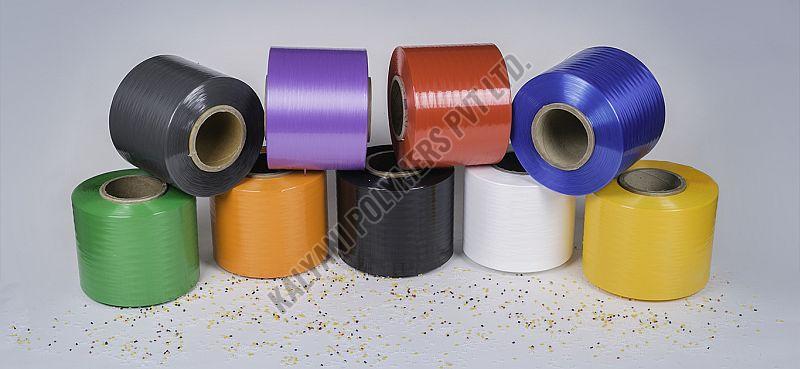

Cable Identification Tapes or Binder Tapes are used for pairing of individual cable conductors from 10 pairs to 200 pairs. Our identification tapes are offered in 11 colors and dual color combinations as well. Our mono axially stretched tapes with high tensile strength and uniform winding and even distribution of tension aids in easy removal of binder during application on SZ Stranders at high speeds and best suited for spiral helix reinforcements as well.
Color Range & Code
- Red-RAL 2030
- Orange - RAL 2008
- Yellow - RAL 1018
- Green - RAL 6018
- Blue - RAL 5015
- Black - RAL 9005
- White - RAL 9010
- Violet - RAL 4005
- Grey - RAL 7036
- Brown - RAL 8003
Applications: Cable identification tapes play an important role as they are used to bind the numerous wire cluster groups or pairs within the cables for easy identification, used in Copper Communication, Instrumentation, Optical Fibres and Automotive Cables.
Technical Specification
| PARAMETERS | STANDARDS | UNIT | SPEC RANGE |
| Denier | ASTM D 1907 | Denier (D) | 600 - 3000 |
| Tape Width | - | MM | 01/05/24 |
| Tape Thickness | - | Micron | 30-70 |
| GPD / Tenacity | ASTM D 2256 | - | 4.0 – 6.0 |
| Elongation | ASTM D 2256 | % | 18 -25 |
| Heat Shrinkage | KPPL/QC/09 | % | 0 - 5 |
